Rubber Corner Guards – Vehicle Impact Protection for Warehouses, Parking & Industrial Zones | UAE

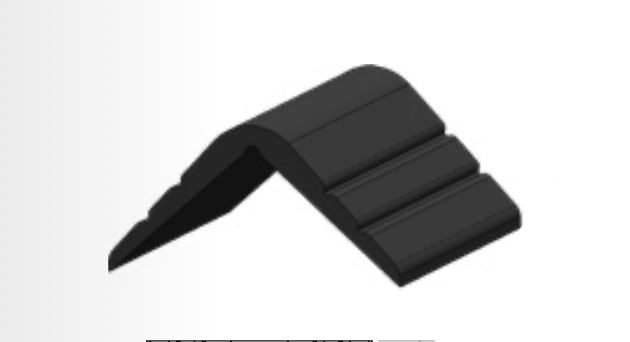

Rubber Corner Guards are essential safety accessories used to safeguard building corners, walls, and structural columns from accidental impact in parking lots, warehouses, and loading bays. These guards are especially effective in high-traffic environments where forklifts, trolleys, or vehicles operate close to infrastructure.
Designed with bold black and yellow hazard stripes, the guards offer enhanced visibility to drivers and reduce the risk of collisions. Moreover, their wrap-around shape ensures full edge coverage, protecting both the structure and the vehicle from damage.
Durable Construction with Smart Design
Made from solid molded rubber, these corner guards are flexible yet highly resistant to wear and tear. You can choose between plain black designs or models with reflective yellow strips for enhanced visibility. Additionally, selected types come with galvanized iron (GI) retainers, offering added structural protection for concrete, brick, or plastered surfaces.
Whether it’s a commercial property, residential parking garage, or an industrial setting, corner guards provide cost-effective and reliable impact protection.
Key Features
- Impact Absorption: Minimizes damage to walls and vehicles
- High Visibility: Yellow stripes serve as clear visual warnings
- Durable Rubber: Made for repeated impact resistance
- Flexible Installation: With or without GI metal backing
- Corrosion Protection: Retainers prevent damage to concrete surfaces
- Indoor/Outdoor Use: Suitable for multiple types of environments
- Quick Mounting: Use adhesive, screws, or both based on the model
Product Variants
Choose from multiple configurations based on protection level and installation method:
- Type A – All Black (No GI backing, sticking type)
- Type B – All Black with Galvanized Iron Retainer (Mechanical fixing)
- Type C – Black with Yellow Strips (No GI backing, sticking type)
- Type D – Black with Yellow Strips and GI Retainer (Heavy-duty fixing)
Standard Sizes Available
- Wing Sizes: 55×55 mm, 65×65 mm, 75×75 mm, 90×90 mm, 100×100 mm, 120×120 mm
- Lengths: 1.0 meter, 1.2 meter
- Material: Solid rubber, optionally with galvanized steel retainer
- Finish: Plain black or reflective yellow stripe design
Installation Instructions
With GI Retainer (Type B & D):
Drill 6 holes in a Z-pattern, then fasten the GI backing plate using M6 x 40mm screws and rawl plugs. Slide the rubber profile securely over the retainer.
Without GI Retainer (Type A & C):
Use industrial-grade epoxy adhesive combined with GI flat screws (4–6 mm) for mounting. Choose screw quantity based on the board’s length and placement.
Applications
- Car parking corners and basement garages
- Warehouse pillars and loading docks
- Commercial building driveways
- Logistics and freight handling zones
- Residential complexes and industrial parking areas
